Lehman Center For Heart And Lung Rehabilitation

This rehab and fitness center that is affiliated with a local hospital needed a lot of Audio/Video work completed due to the size of the space, and how it is divided into separate, smaller spaces.

The first area you encounter is the lobby/lounge area. There we mounted two 55" Sony TVs and connected them to the TV feed as well as a Blu-Ray player. We mounted a Control4 touch panel to the wall to control the audio and video to this area.

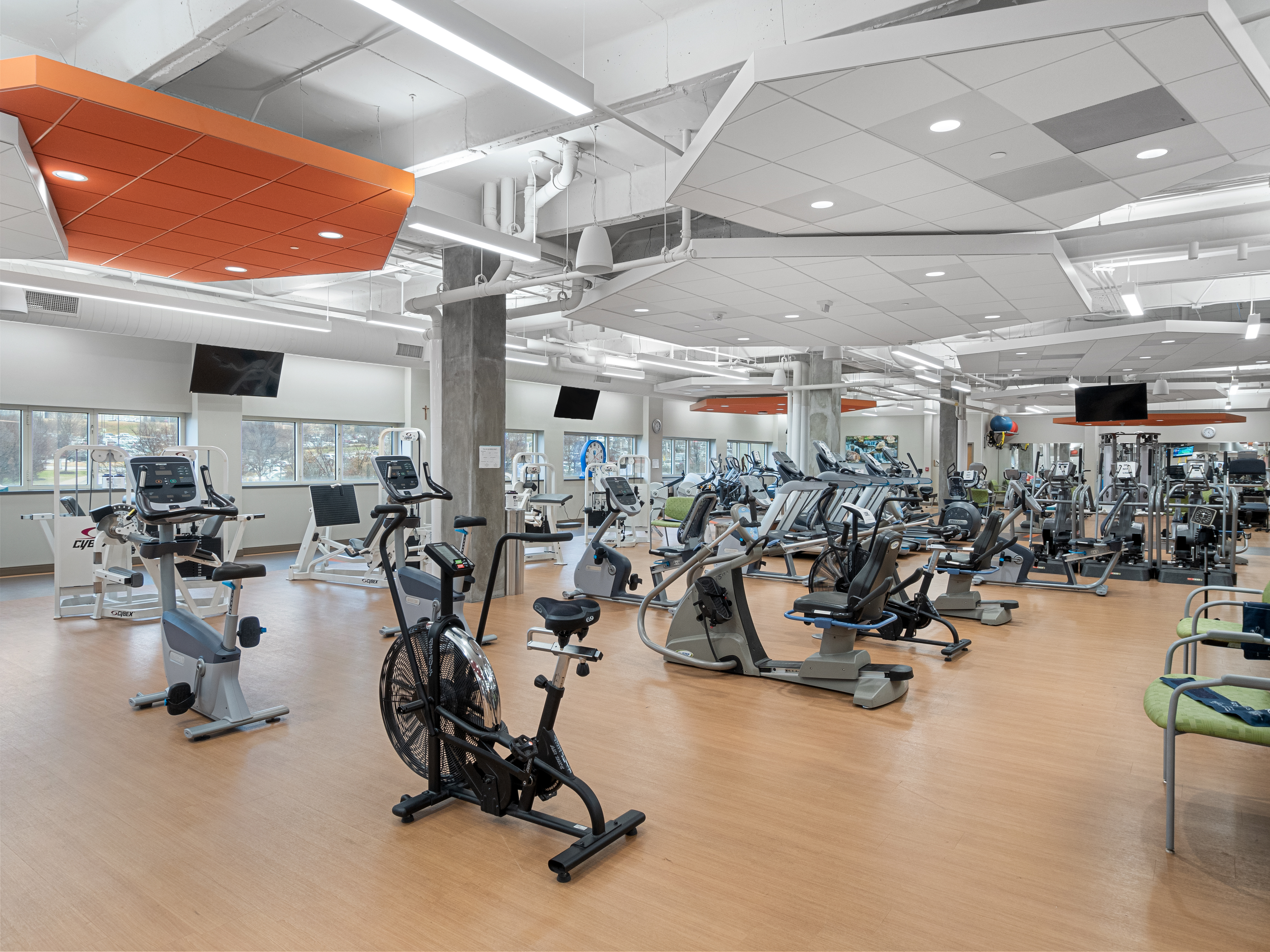

The second space is dedicated to training and a walking track. Here we ceiling-mounted 6 55" Sony TVs and mounted another Control4 touch panel to the wall in a central location.

There are also 2 multi-purpose rooms. In each room, we installed a TV, and connected them to the video feeds as we did in the other areas. The audio feeds were connected to an audio matrix switch that also provides networked radio and music sources. A wireless microphone was installed in each room and connected to a microphone mixer that allows it to be used along with the audio source playing. The matrix switch was connected to the overhead speakers. These rooms have both a wall-mounted touch panel, as well as hand-held remote controls.

The next area is the employee fitness room, where we installed 8 55" TVs and again connected an audio matrix switch to the overhead speakers. Another wall-mounted touch panel was installed to control the A/V.

A Control4 automation system was utilized to control all of the TVs and audio/video sources. A router and network switch were installed for the Control4 network connections. A 38-channel audio matrix switch with DSP control was installed and connected to the audio source equipment and overhead speaker system.

As for the speaker system itself, we installed speakers in 5 different zones. We utilized mostly pendant speakers, with a few in-ceiling speakers where those were better suited to the room. Each zone has its own volume control. For the entire sound system, we installed two Episode commercial amplifier-mixers.
